Primary punch is the first punch to use when cutting the chain.

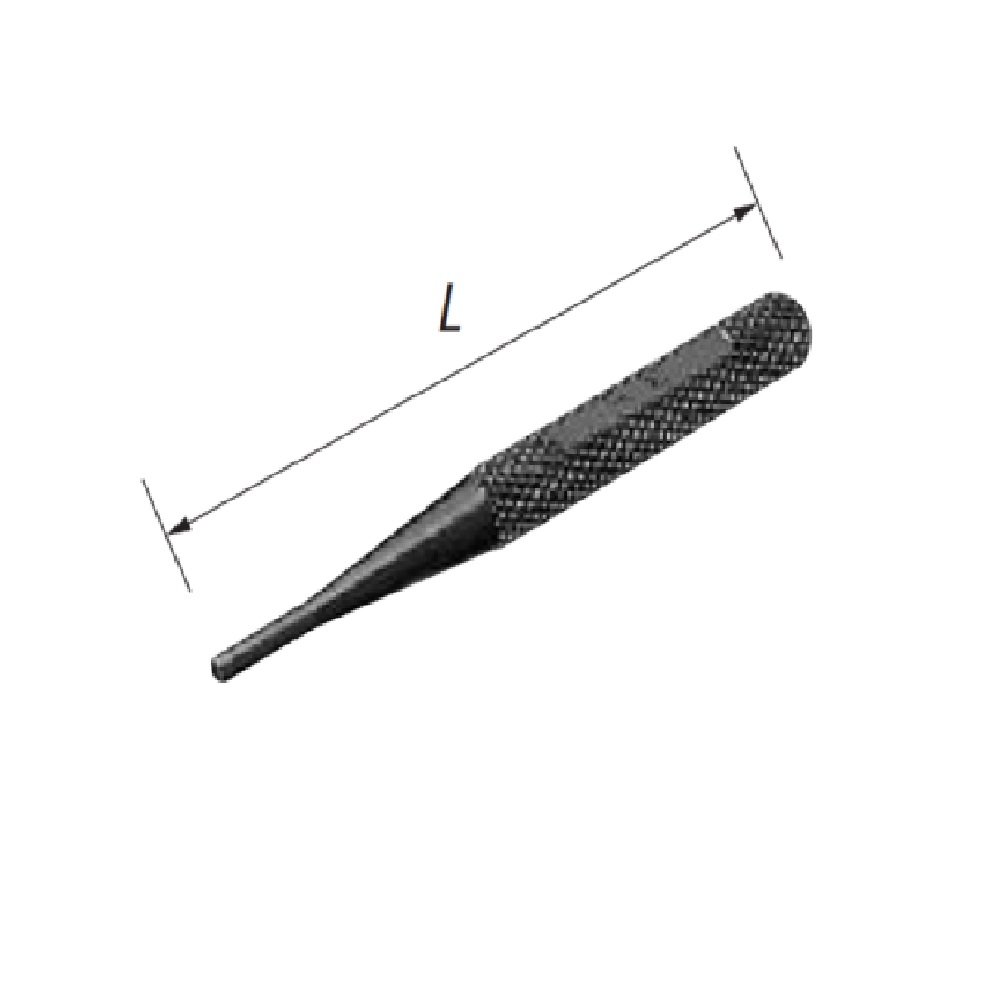

Secondary punch is used after the primary punch to remove the pin.



- Put a primary punch, according to chain size, onto the ground pin or pin removed cotter pins, and then hit the head of the primary punch with a hammer.

- Make sure to hit the pins alternatively to ensure the pins are removed evenly and at the same time.

- Continue to tap the pin until just before the pin is removed from the outer plate.

- Use a secondary punch to remove the pin completely from the outer link plate.



For information on how to use the equipment, click here to see the videos on maintenance/handling page.







Tools

No.

RS15

RS25

RS35

RS40

RS50

RS60

RS80

RS100

RS120

RS140

RS160

RS180

RS200

RS240

Primary Punch

RS-P11

RS-P14

RS-P15

RS-P16

Secondary Punch

RS-P21

RS-P22

RS-P23

RS-P24

RS-P25

RS-P26





*The image is for reference purposes only. The actual product may differ in terms of engraving, pin shape, and other aspects. Please kindly confirm the dimensions well before placing your order. Please feel free to contact us if you have any.
