Hollow Pin Double Pitch Chain
- The pin is made with a hole, enabling various attachments to be installed simply and easily.

- Regardless of if the chain is straight or wrapped around a sprocket, the center distance between attachments is always the same.

- Easy to replace attachments, do maintenance, or adjust attachment spacing even while the chain is installed on equipment.

- The load from the attachments is distributed equally to both sides of the link plates.

R Roller

- The roller diameter is larger than the plate width, and the roller is used in Double Pitch Chain.

- R rollers are the most basic and feature high load carrying capacity and low frictional resistance.

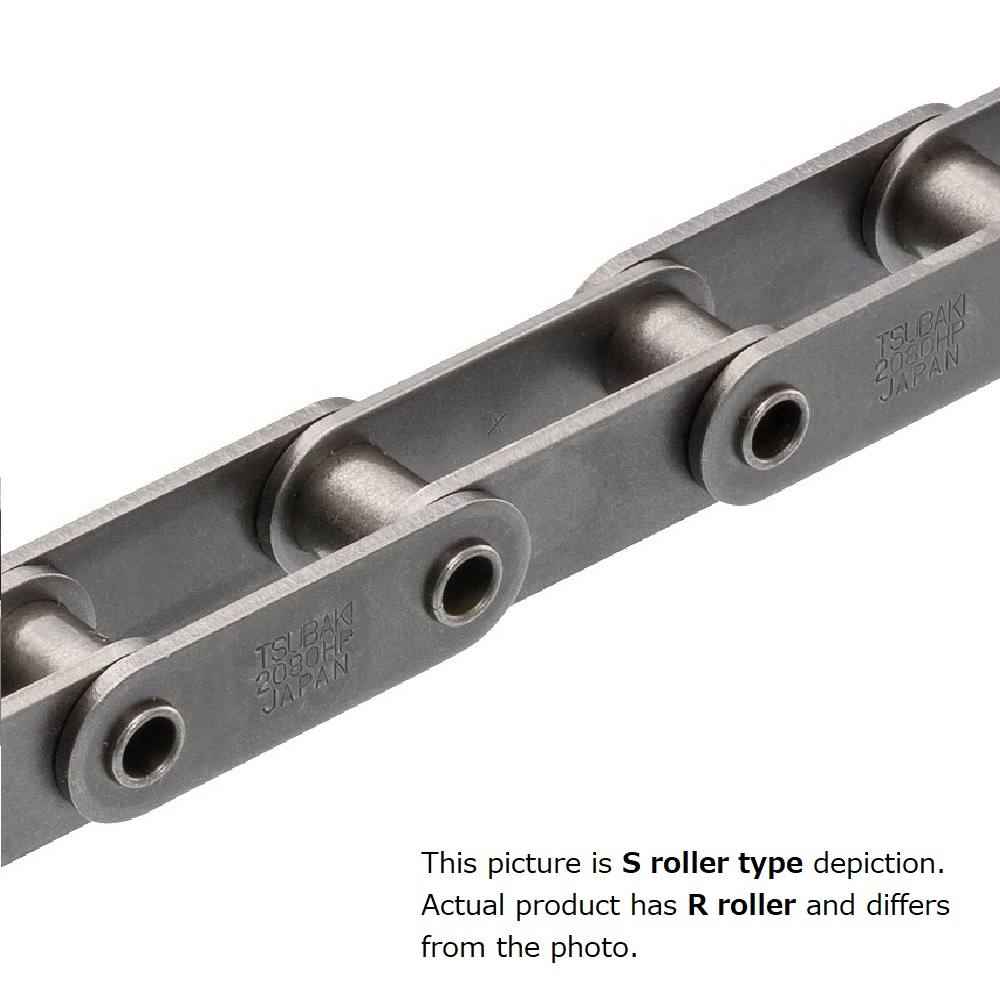

S Roller

- The roller diameter isis smaller than the plate width.

- Effectively reduces shock and wear when the chain engages the sprocket.

*The image is for reference purposes only. The actual product may differ in terms of engraving, pin shape, and other aspects. Please kindly confirm the dimensions well before placing your order. Please feel free to contact us if you have any.

Max. Allowable Load: 4.22 kN (430 kgf)

No. of Links per Unit: 80

Operating Temp: -10~ 150℃

* Please check Roller Allowable Load as well.
