Double Pitch Chain - Has double the pitch of RS Attachment Chain with a flat plate contour.
- Can use R or S rollers, allowing for use in various applications.
- Double Pitch type sprocket or RS sprocket (when the number of teeth is 30 or more with S roller) can be used.
- Suitable for relatively long distance and low speed conveyance.
- R rollers and S rollers are available, with usage depending on application.
R Roller
- The roller diameter is larger than the plate width, and the roller is used in Double Pitch Chain.
- R rollers are the most basic and feature high load carrying capacity and low frictional resistance.

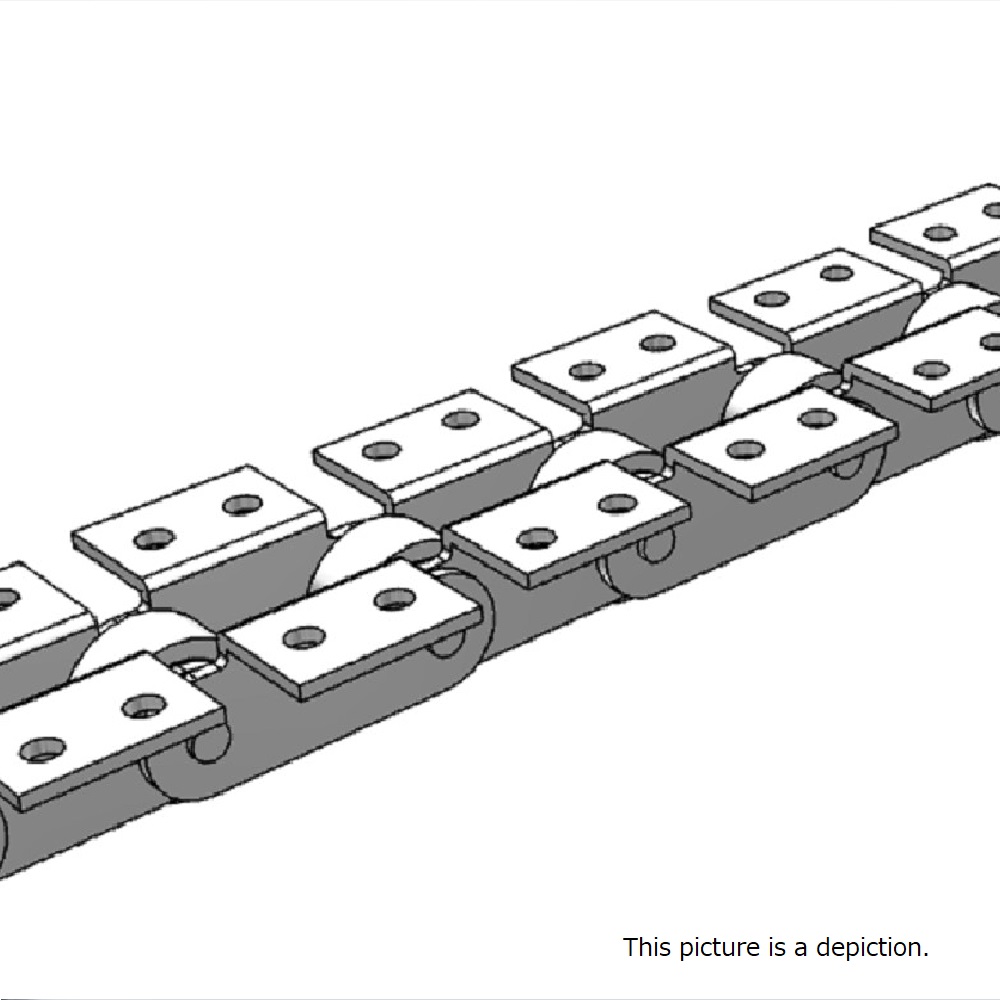

*The image is for reference purposes only. The actual product may differ in terms of engraving, pin shape, and other aspects. Please kindly confirm the dimensions well before placing your order. Please feel free to contact us if you have any.
Max. Allowable Load: 4.31 kN (440 kgf)
No. of Links per Unit: 96
Operating Temp: -10~ 150℃
* Please check Roller Allowable Load and Attachment Allowable Load as well.
