Corresponds to ISO A / JIS / ANSI standard, general-use roller chain
Promote efficiency, minimize downtime, and maximize profitability - Specify TSUBAKI.
There are two types of chain pins: RP and CP.
Pin Type
RP: Pin is riveted.
CP: One end of the pin is riveted, and the other end is fixed using a cotter pin or spring pin.

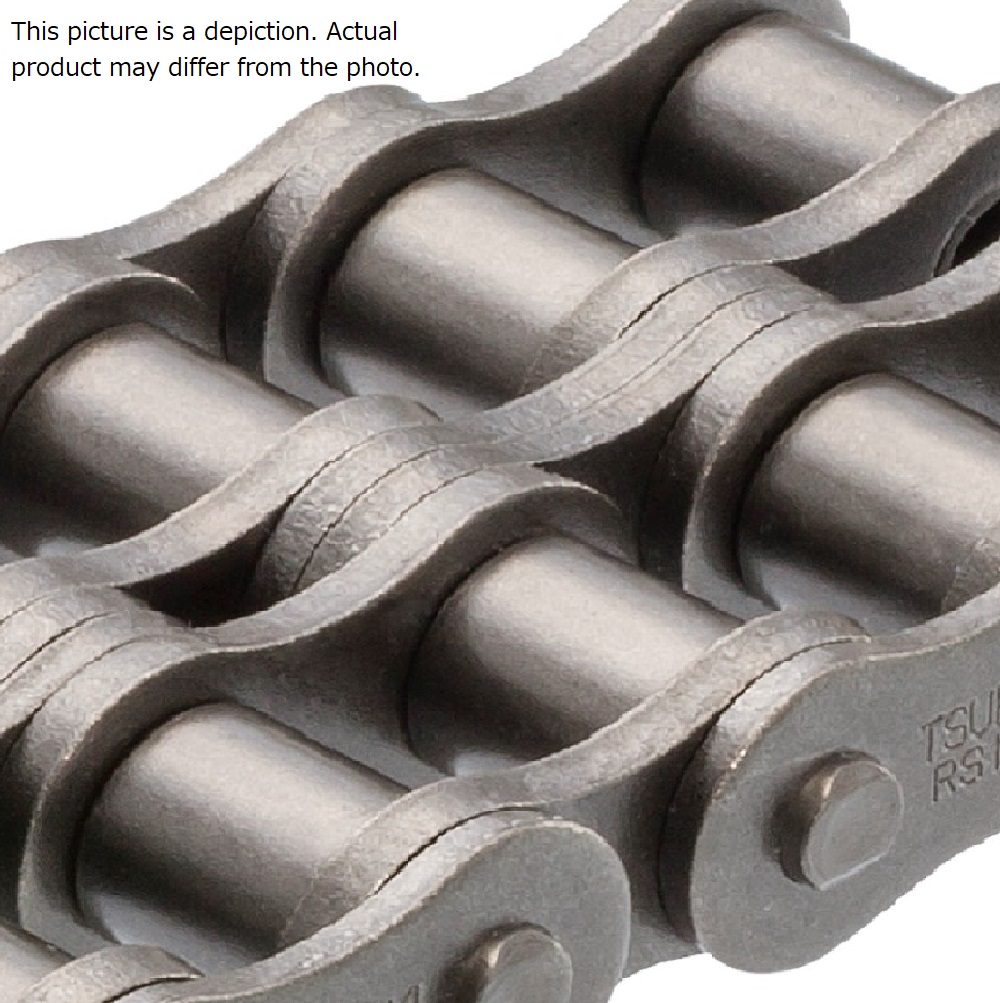

*The image is for reference purposes only. The actual product may differ in terms of engraving, pin shape, and other aspects. Please kindly confirm the dimensions well before placing your order. Please feel free to contact us if you have any.
Major Specifications
Size & No. of Columns
No. of Strands
Dimensions L1
mm
Dimensions L2
Offset Pin Length L
Transverse Pitch C
JIS Tensile Strength kN {kgf}
Min. Tensile Strength kN {kgf}
Avg. Tensile Strength kN {kgf}
Max. Allowable Tension kN {kgf}
Estimated Mass kg/m
No. of Links Per Unit
RS60-2
2
24.25
26.25
52.6
22.8
62.6 {6384}
80.4 {8200}
88.3 {9000}
15.0 {1530}
3.04
160
Notes
2-pitch offset links (2POL) can be used at the above ratings.
